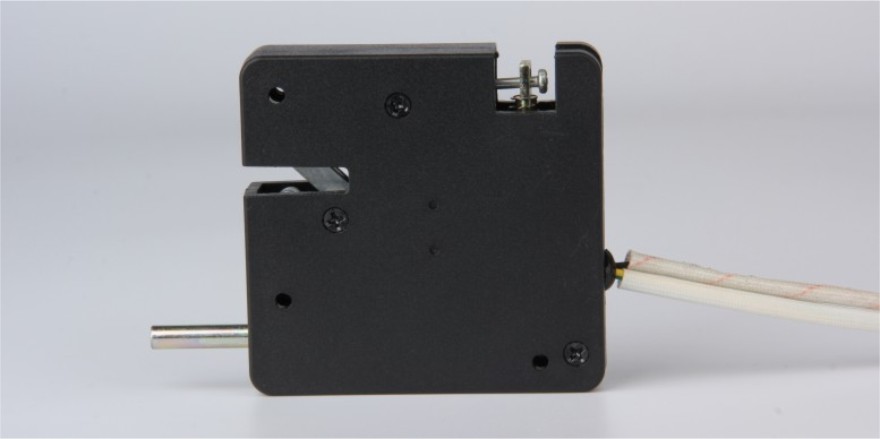

XYEL002型 (Type XYEL002)
1、外殼材質為特殊塑膠；
2、耐高溫、耐低溫、耐腐蝕；3、適用于存物柜、寄存柜、快遞柜、工具柜等類型；有防人為外力敲、防自開功能；
4、鎖的尾部配有SM2P母端子，公頭端子（根據需求SM2P端子可以選配）；
5、兩組SM2P端子，其中黃綠線是信號反饋控制端子，另一組（紅黑線）是電源端子
6、鎖前端圓柱軸通電開門助推作用，門可推開40%--50%；

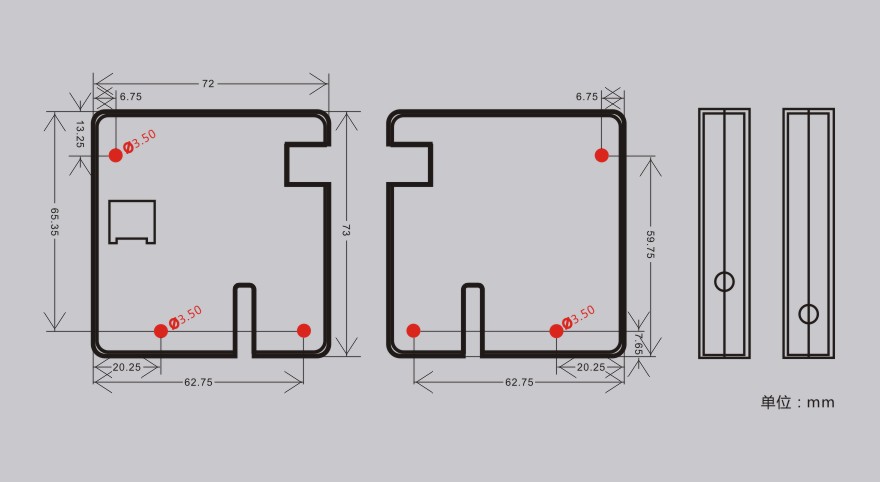

7、安裝孔尺寸見附圖。
Type XYEL002
(1) The material of casing is a special plastic
(2) High temperature resistance, low temperature resistance, corrosion resistance
(3) It applies to the cabinets, lockers, express cabinets, tool cabinets and others with the functions of anti –self open by knocking and beating manually
(4) The rear end of the lock is provided with SM2P female terminal and male terminal (SM2P terminal can be matched according to demands)
(5) Two groups of SM2P terminals: the yellow and green wire of which are the control terminals for signal feedback while the other group (red and black wires) is the power terminals
(6) The cylinder axis at the front end of the lock can push the door 40% ~50% open at the power on
(7) The size of the mounting hole refers to the attached Drawing.
